Was the MediaGate MG-35 a Worthy Media Player?

Before streaming services transformed home entertainment, managing and enjoying digital media on a TV required creativity and patience. Torrents and downloaded shows, often in formats like Xvid, were at their peak, but the options for viewing them on televisions were limited. While burning DVDs was a tedious and costly workaround, many relied on connecting a PC to the TV. Unfortunately, those setups were plagued by cumbersome interfaces, constant updates, and the need for technical know-how.

Enter the Mediagate MG-35, a device purpose-built for bridging the gap between PC media libraries and traditional televisions. Products like the MG-35 were essential stepping stones in the evolution of home entertainment. It gave users the ability to watch their media on TVs without the frustrations of a PC, presenting an affordable and convenient solution for its time.

The Hardware: Versatile and Capable

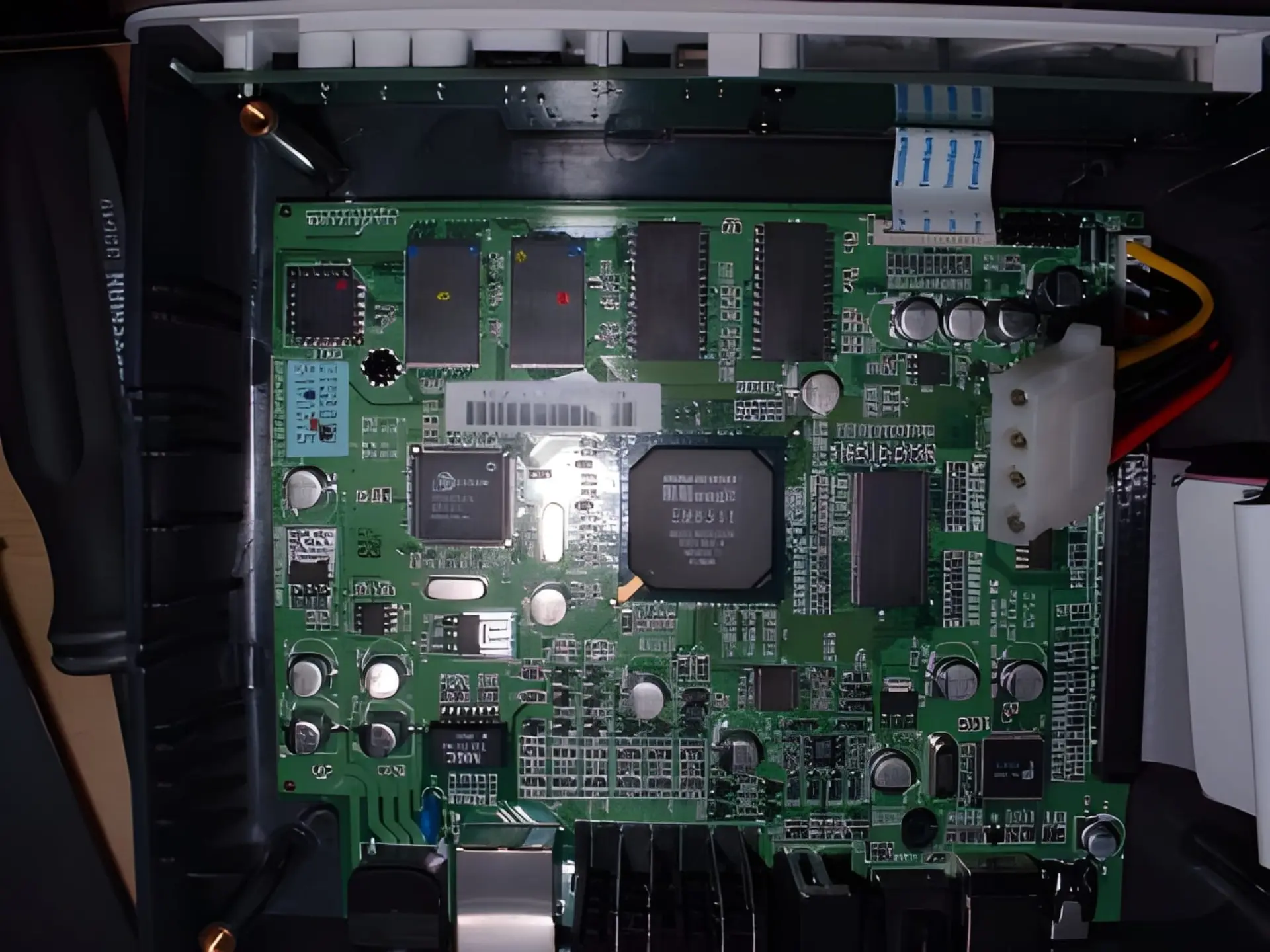

At the heart of the Mediagate MG-35 was the Sigma Designs EM8511 chipset, a multimedia processor that excelled at playing formats like Xvid and DivX, both of which were cornerstones of digital video in the mid-2000s. This chipset allowed the MG-35 to handle video playback smoothly while running a custom Linux-based operating system that gave the device its flexibility and reliability.

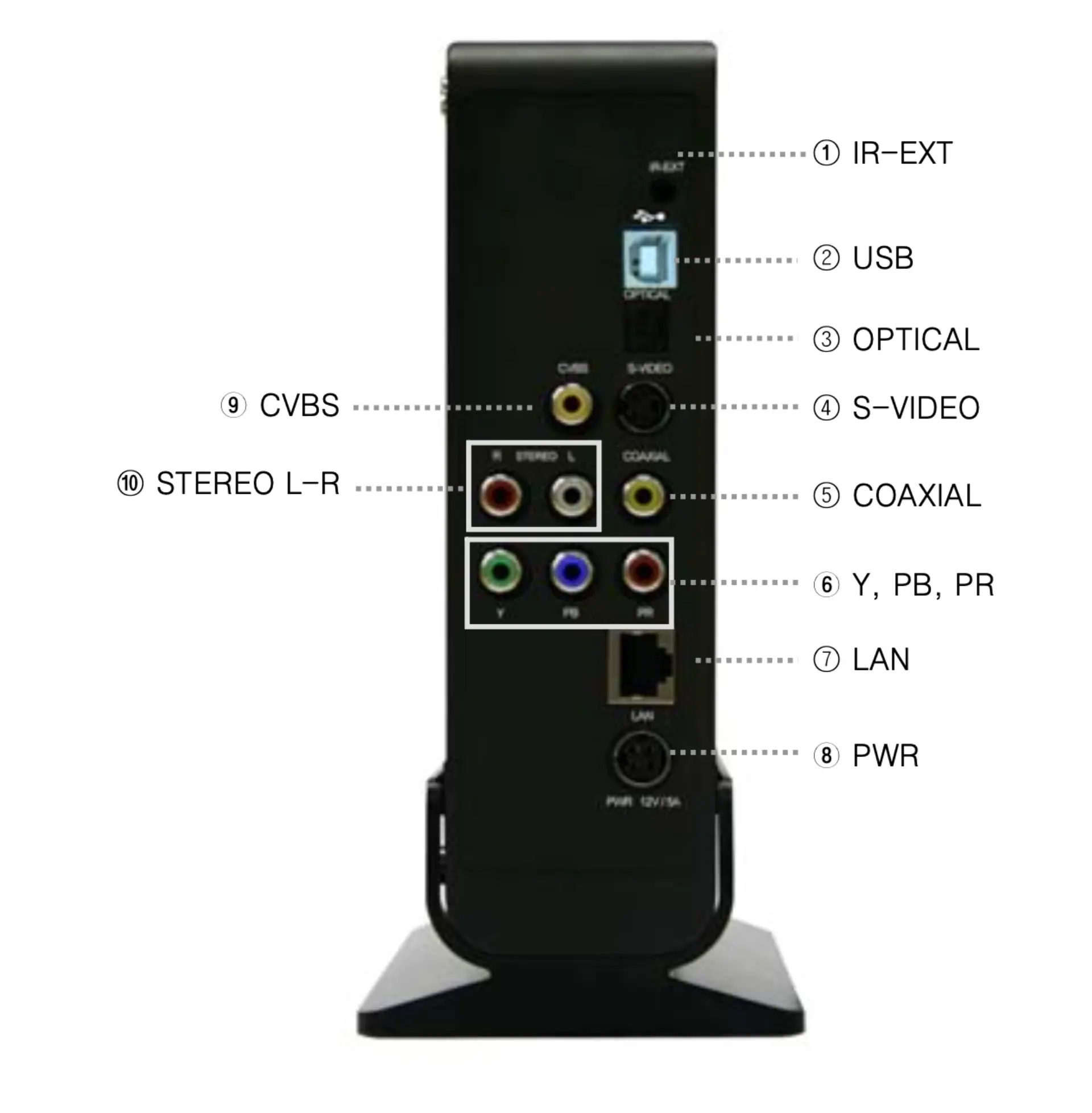

The device was housed in a compact, vertical-standing chassis. The front featured simple navigation buttons, status LEDs for power, network activity, and hard disk use, as well as an IR receiver for the remote control. Around the back, the MG-35 offered a variety of connectivity options. For video, users could choose from composite, component, or S-Video outputs, making the device compatible with nearly all televisions of the era. Audio outputs included stereo RCA connectors and digital options like coaxial and optical, enabling users to connect to high-fidelity sound systems for 5.1 channel audio.

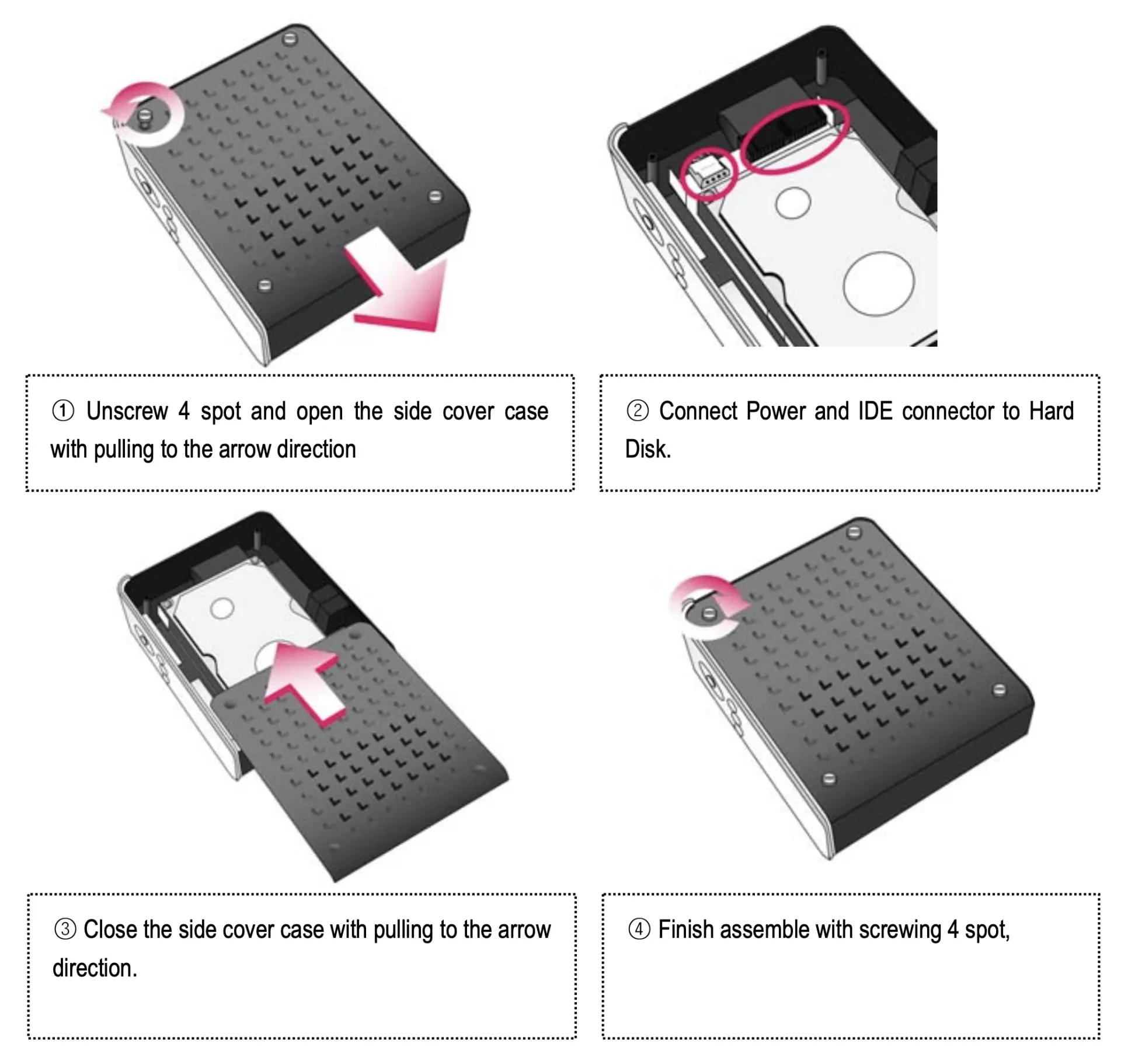

What truly set the MG-35 apart was its internal storage capability. The device supported a 3.5-inch IDE hard drive, which could be formatted to either FAT32 or NTFS. This feature transformed the MG-35 into a portable media hub, allowing users to carry their libraries to different TVs without relying on a network. Additionally, the Ethernet port supported 10/100 Mbps connections for network streaming, and the USB 2.0 port allowed the device to function as an external drive when connected to a PC.

Despite these versatile features, the MG-35’s build quality left much to be desired. Some users reported loose connectors at the rear, and the remote control felt flimsy, even by mid-2000s standards. Still, the MG-35's hardware design emphasized function over form, and for most users, it delivered exactly what it promised.

The Interface: Straightforward but Limited

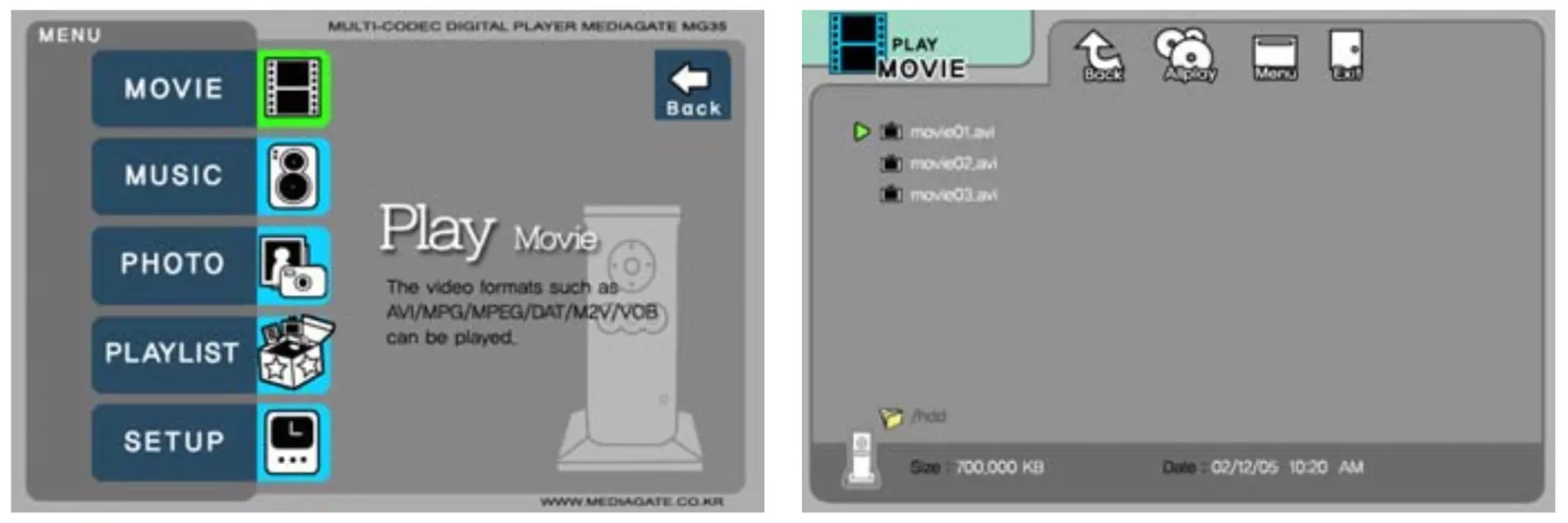

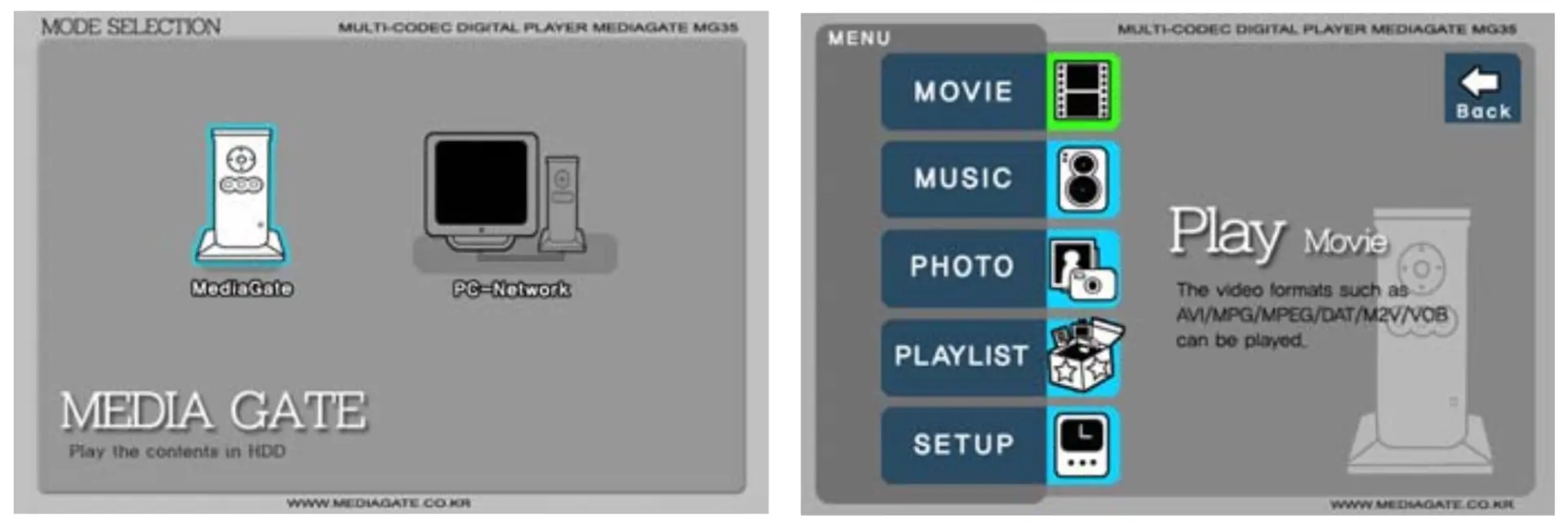

While the hardware was designed for versatility, the interface took a much more utilitarian approach. Upon powering on the device, users were greeted with a basic menu offering access to either the internal hard drive or a networked PC. From there, media files were sorted by type—movies, music, and photos—and could be navigated using the included remote.

File selection was straightforward, but the interface was far from polished. Options like playlist creation and subtitle synchronization were available, but the process could be clunky. For video playback, the MG-35 supported dual audio tracks, subtitle size adjustments, and synchronization tweaks, features that were highly valued by enthusiasts.

Streaming video over the network would requires an anonymous Windows shared folder. Those hosting their files over Linux would need to use Samba with a configuration a-kind to the one bellow.

[global]
...
obey pam restrictions = yes
workgroup = home
encrypt passwords = true
guest account = guest
null passwords = yes

[aMedia]
invalid users = root
guest ok = yes
public = yes
path = /home/video
writeable = no

The remote, while functional, suffered from poor build quality and was not particularly intuitive to use. However, for users willing to look past these limitations, the interface delivered the core functionality needed to navigate and enjoy large digital libraries.

Legacy: A Glimpse into the Future

Reflecting on the Mediagate MG-35, it’s clear that this device was a product of its time. It catered to the needs of media enthusiasts during a transitional period when physical media was giving way to digital formats, and streaming services were still in their infancy. The MG-35 provided an affordable way to manage and enjoy digital libraries on televisions, solving a problem that many users faced.

While the MG-35’s limitations, such as its lack of HDMI and its basic interface, make it seem outdated today, it’s important to appreciate the role it played in the evolution of home entertainment. Devices like the MG-35 and its competitors helped pave the way for modern streaming devices, demonstrating the value of dedicated media players and their potential to simplify the user experience.

The MG-35 may no longer be in use, but its legacy serves as a reminder of the technological milestones that brought us to where we are today.
